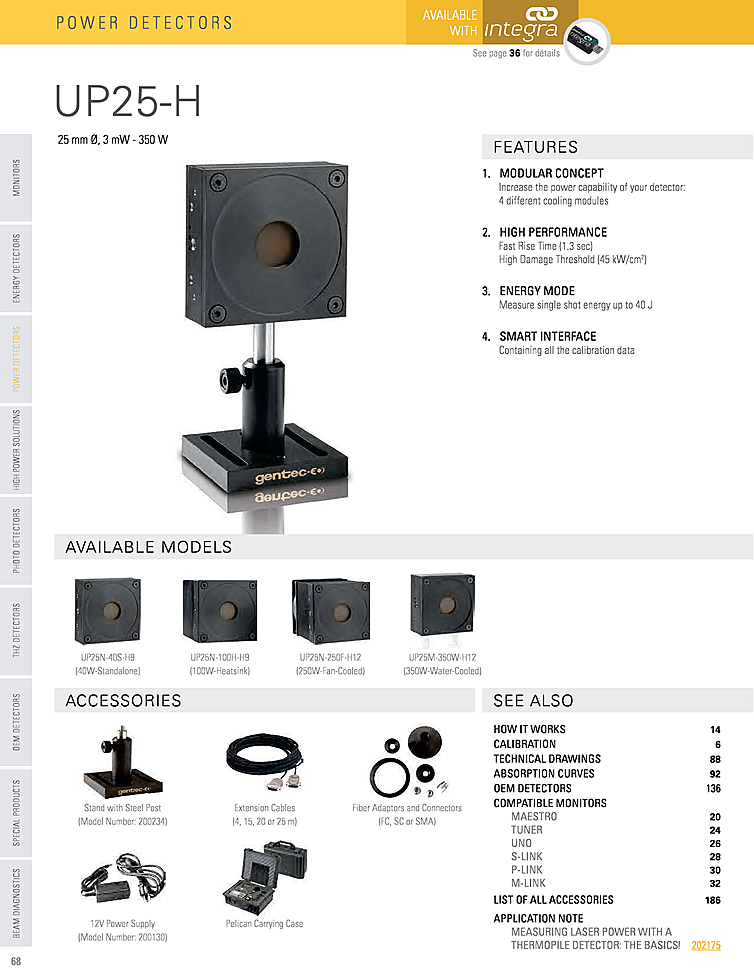

0.19-20μm, 3mW-80W Optical Power Sensor

Gentec-EO UP25N-40S-H9
0.19-20μm Spectral Range
3mW-80W Power Range

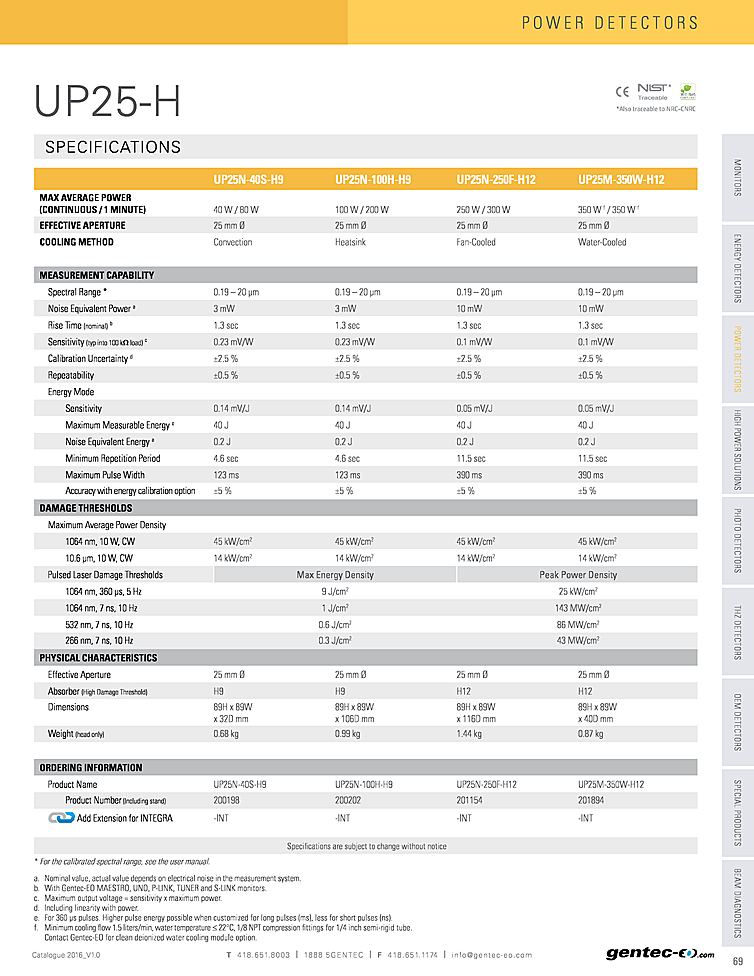

Typical Specifications:
- Max Avg Power: 40W / 80W
- Effective Aperture: 25 mm
- Cooling Method: Convection
- Spectral Range: 0.19-20 μm
- Noise Equivalent Power: 3 mW
- Rise Time: 1.3 sec
- Sensitivity: 0.23 mV/W
- Calibration Uncertainty: +/- 2.5%
- Energy Mode:
-- Sensitivity: 0.14 mV/J
-- Max Measurable Energy: 40 J
-- Noise Equivalent Energy: 0.2 J
-- Min Repetition Period: 4.6 sec

Key Features:
- Increase the power capability of your detector w/ 4 different cooling modes
- Fast rise time and high damage threshold
- Measures single shot energy up to 40J
- Containing all of the calibration data
