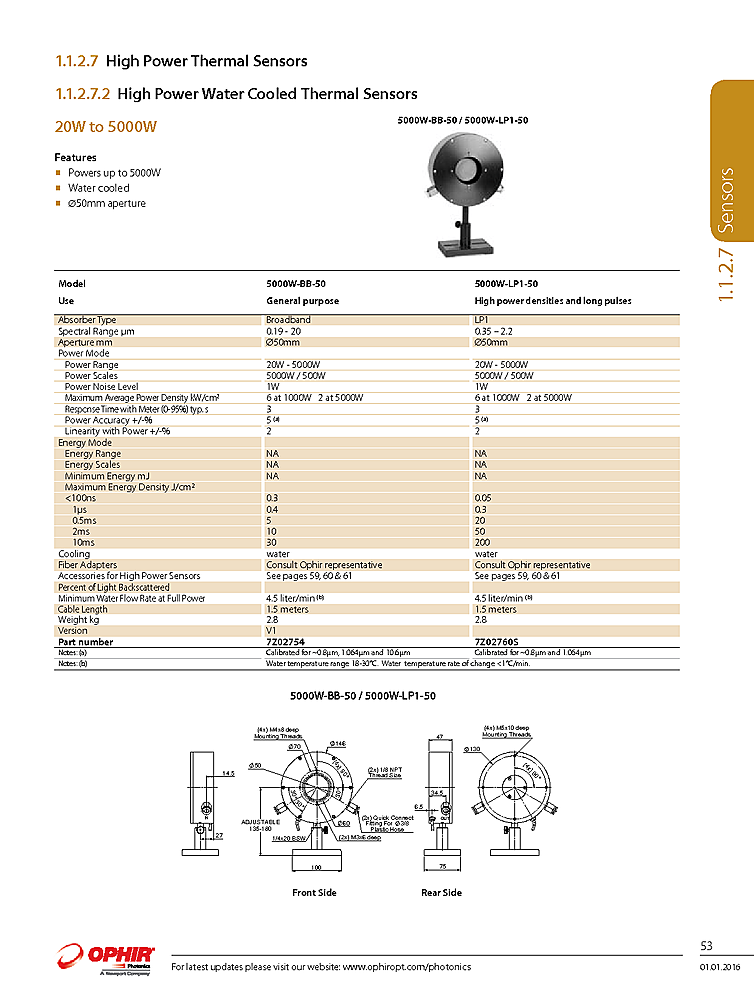

0.19-20µm, 20W-5000W Optical Power Sensor

OPHIR 5000W-BB-50
0.19-20µm Spectral Range
20W-5000W Power Range

Typical Specifications:
- Use: General purpose
- Absorber Type: Broadband
- Spectral Range: 0.19 - 20 µm
- Power Mode:
- Power Range: 20W - 5000W
- Power Scales: 5000W / 500W
- Power Noise Level: 1W
- Max Avg Power Density: 2 kW/cm^2 at 5000W
- Response Time with Meter (0-95%): 3 s
- Power Accuracy: +/- 5%
- Linearity with Power: +/- 2%
- Energy Mode:
- Minimum Energy: mJ NA
- Maximum Energy Density: 0 J/cm^2 <100ns
- Aperture: Ø50mm
- Water cooled

Description:
Broad spectral range high power optical measurement head from Ophir Photonics. Large 50mm diameter aperture with a wavelength range of 190nm-20μm. Response time with an optical power meter is less than 3 seconds and power density of 6kW/cm2. Optical power measurement accuracy is +/-5% with a linearity of +/-2%. The thermal sensor uses water cooling. Optical power sensor with measurement range of 20 watts to 5000 watts.
