Laser Beam Profiler, 1µm to 8µm

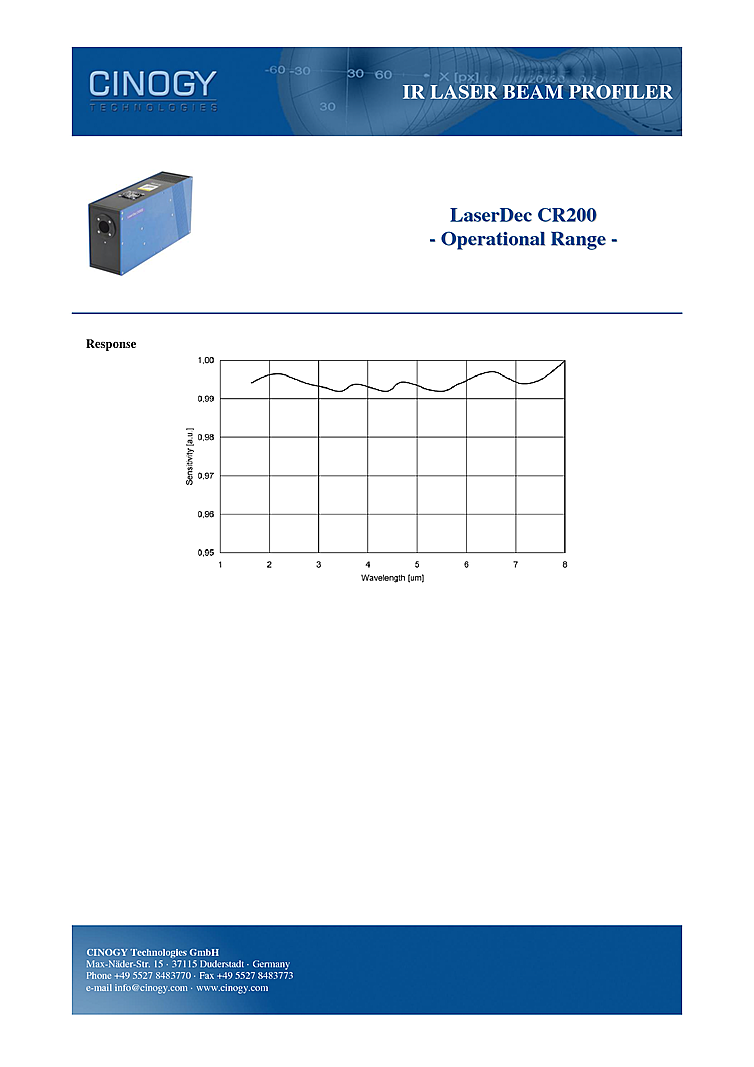

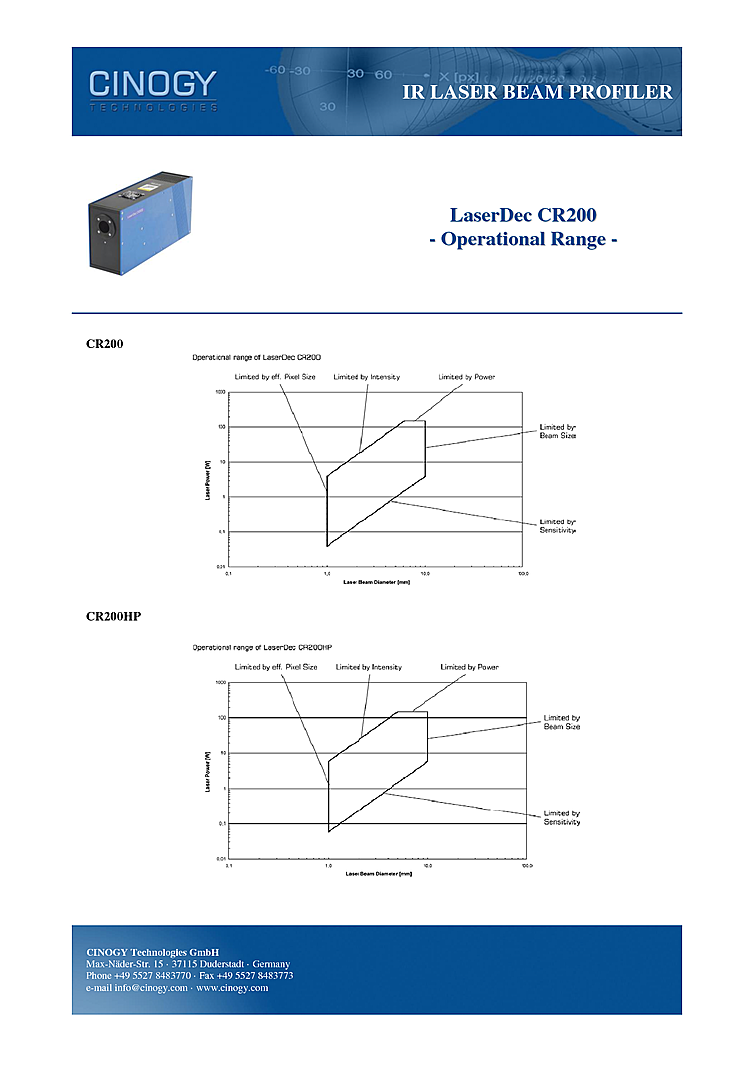

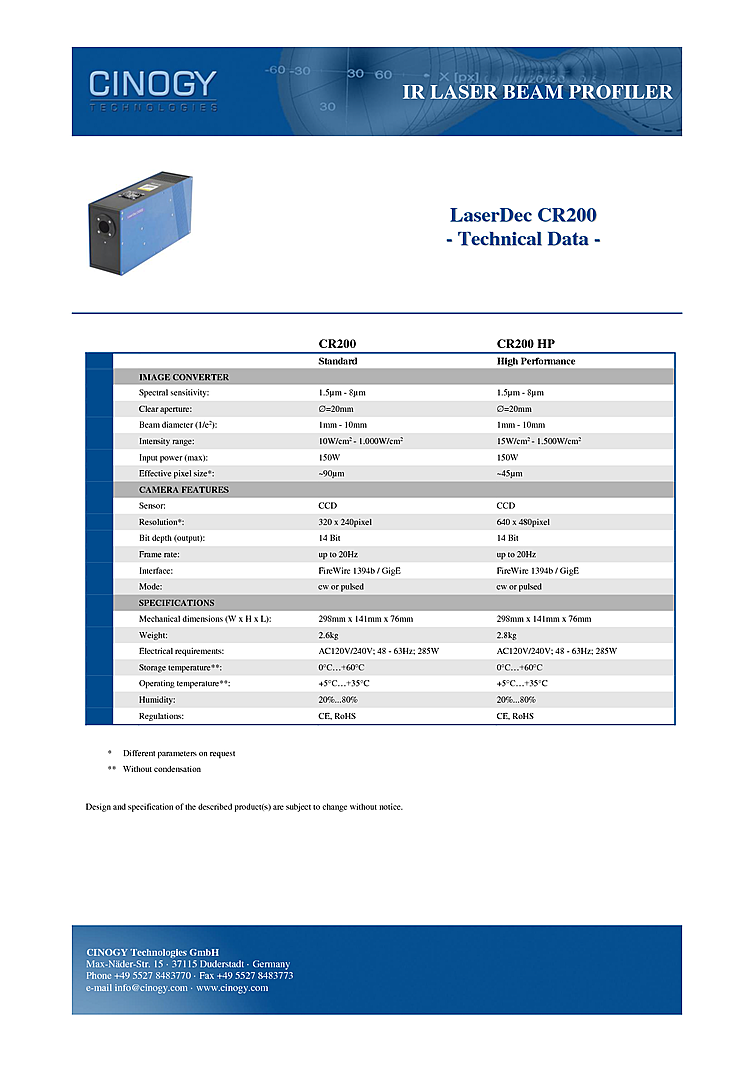

Laser beam profiler covers IR wavelength range and measures large aperture laser beams. CCD camera technology with resolution up to 640 x 480 pixel and 14 bit A/D. Measure up to 150W output power beams directly with Cinogy Technology laser beam profiler. Aperture up to 20mm and measure laser beams from 1mm to 10 mm. Laser beam profiler wavelength range is 1µm-8µm.
