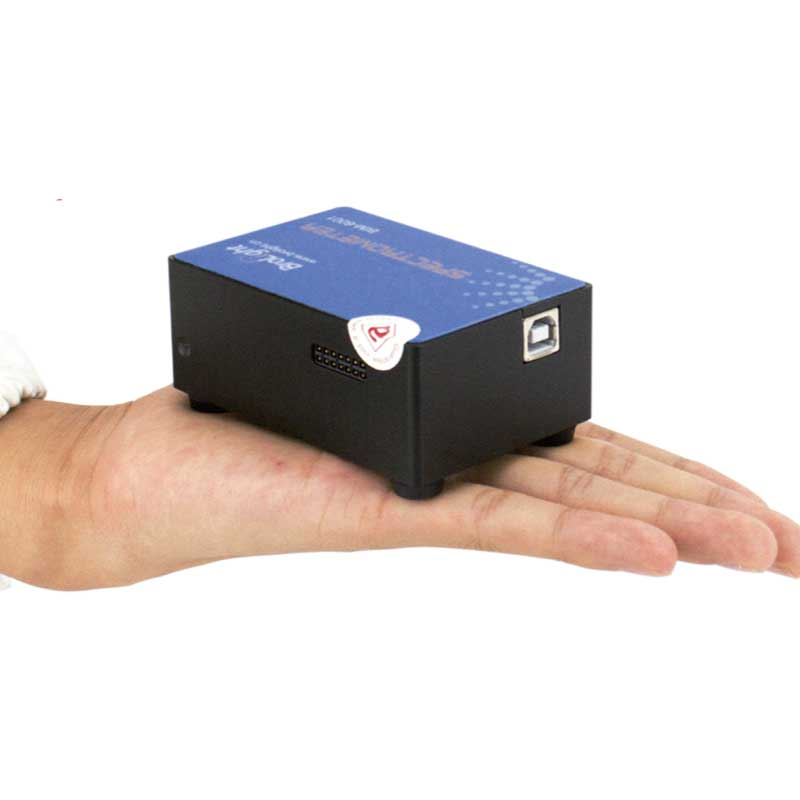

  • Compact Fiber Optic Spectrometer

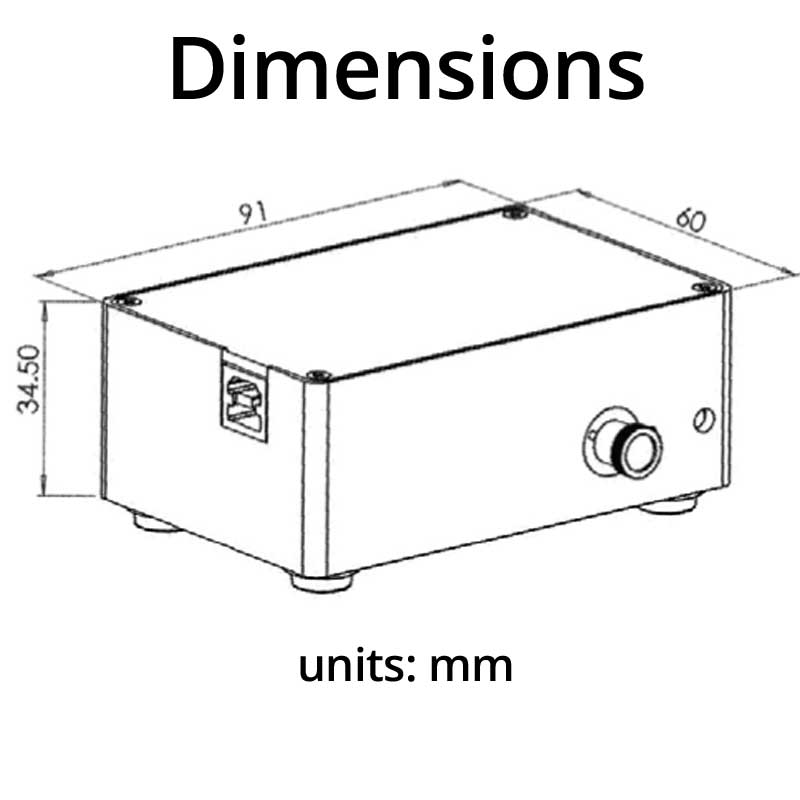

  • Fiber Optic Spectrometer Dimensions

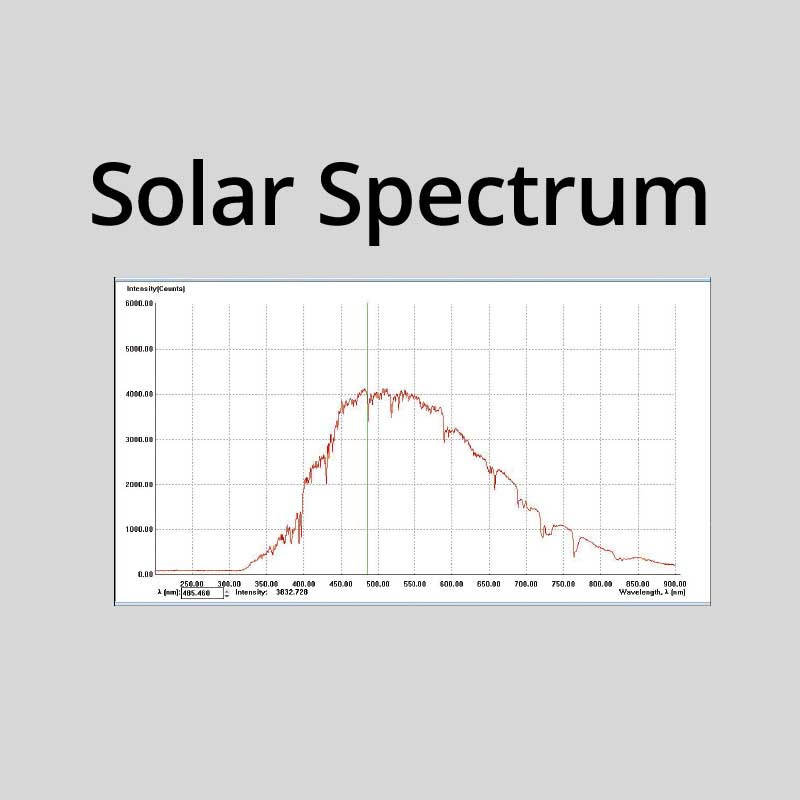

  • Fiber Optic Spectrometer Solar Spectrum

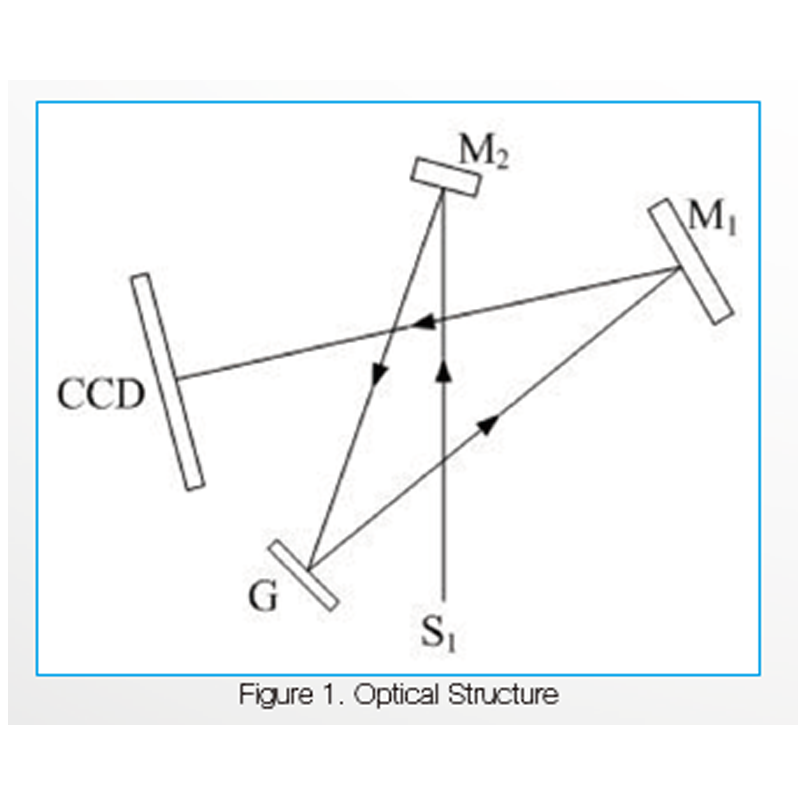

  • Fiber Optic Spectrometer Optical Structure

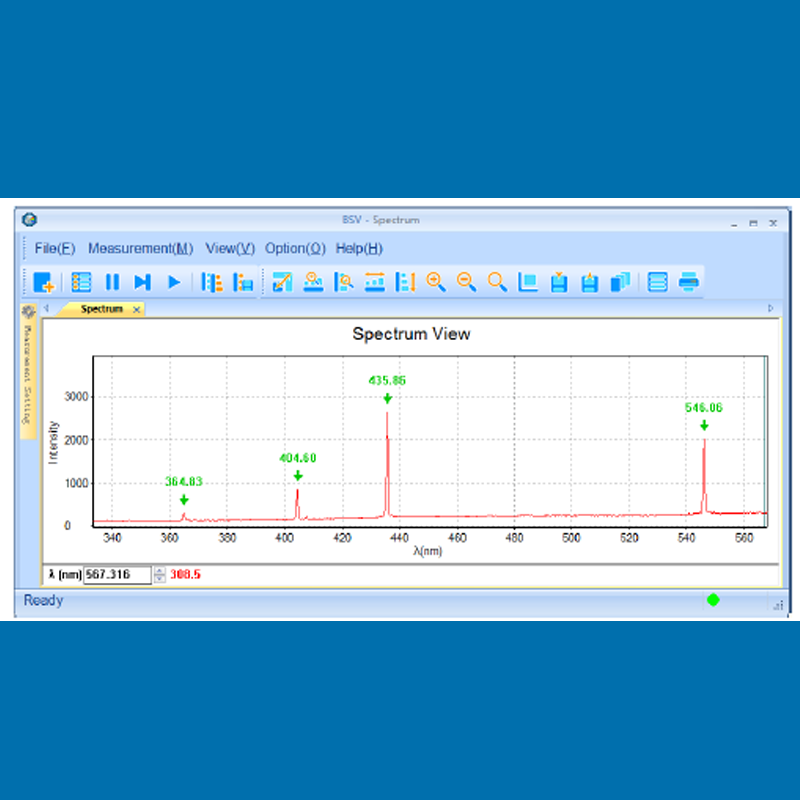

  • Spectrometer Software View

Request Quote
sku / item#: BIM6000102
ships: 2 weeks

Key Features
  • ≤1nm Accuracy, Toshiba CCD sensor
  • Crossover asymmetric optical structure suppresses stray light on the surface plane & eliminates the effects of secondary refraction
  • Fast data acquisition speed
  • Multiple trigger modes: External, Software and Synch

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BIM6000102
PRICE Request Price
  • Spectral Measurement Accuracy: ≤1 nm
  • Spectral Response Wavelength Range: 400 nm - 1100 nm
  • Slit Size: 25um (width) x 2mm (height)
  • Signal to Noise Ratio (@ Full Scale): 300:1
  • Detector Manufacturer & Model: Toshiba 3648 CCD
  • Grating (lines / mm): 600
  • CCD Pixel Number: 2048
  • CCD Pixel Size: 8 µm ×2 00 µm
  • A/D Resolution: 12 bit
  • Integration Time: 4 ms -10 s
  • Operating Temperature Range: 5℃ - 35℃
Sensor Information
  • Sensor Manufacturer & Model: Toshiba 1304CCD
  • Grating (lines / mm): 600
  • CCD Pixel Size: 8 µm × 2 00 µm
  • CCD Pixel Number: 3648
User Interface and Fiber Optic Connector
  • Dimensions: 91 mm × 60 mm × 34.5 mm
  • Fiber Optic Connector: SMA905
  • Computer Interface: USB 2.0
  • Control Software with GUI Included
  • Operating System Compatibility: Win XP, 8 & 10
Dimensions and General Specifications
  • Dimensions: 91 mm × 60 mm × 34.5 mm
  • Weight: 0.3 Kg
  • Power Consumption: 250 mA, 5 VDC
External Trigger, Software Trigger, Synch Trigger
  • External Trigger Signal: TTL, Rising Edge
  • External Trigger Input Impedance: 50 Ω
  • Trigger Frequency Bandwidth: 250 Hz
  • Trigger Pulse Length: > 1 µs
  • Trigger Delay: < 20 µs

Product Overview:

These affordable, high accuracy spectrometers are based on industry leading high quality core components. The core components include the grating, Toshiba detector, high-order diffraction filter and the column lens. The optical design and software can be customized on request to fit OEM requirements. Software development kits and technical support are available. These fiber optic spectrometers can be easily integrated into a variety of spectral measurement applications and systems due their compact size as well as their supporting external trigger synchronization capabilities.

The BIM series spectrometers have been used in hundreds of measurement applications including environmental monitoring, light source / LED / and laser measurement, material optical properties measurement, material analysis, and Raman analysis. Other applications include biomedical testing and other OEM product integration.

Spectrometers are the fundamental measurement instrument used in spectroscopy. With the extensive emerging applications in spectroscopy, these products are now are used in more advanced fields such as color measurement, chemical concentration measurement and radiation analysis. For more detailed information and related accessories, please refer to the application section of the full catalog (request). Fiber optic spectrometers are composed of an entrance slit, a collimator, a dispersion element (grating or prism), a focusing optical system and a detector. The BIM series spectrometer uses a crossed Czerny-turner optical structure. The system design is simple and compact. The light is incident from the slit and collimated through the mirror, and the parallel light is incident on the grating and is incident on the mirror by the grating, and is focused on the CCD. The light signal then becomes and electrical signals.
