355nm, 24W Picosecond Laser

COHERENT Lasers Paladin Advanced 355-24000
355nm Picosecond Laser
24W Output Power

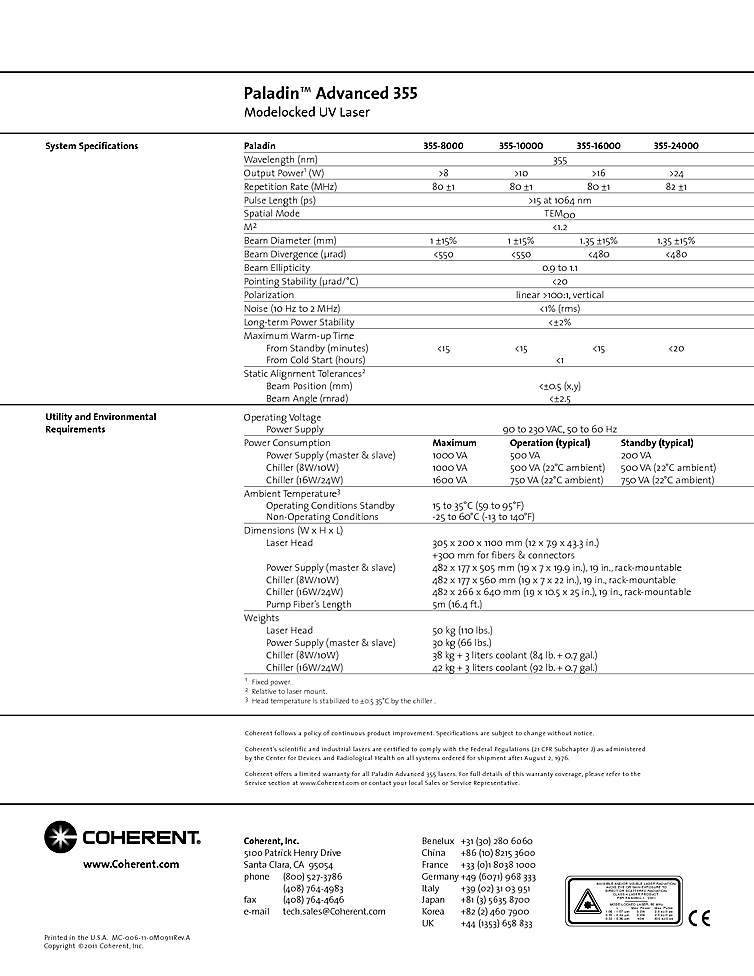

Typical Specifications:
- Wavelength (nm): 355
- Output Power (W): >24
- Repetition Rate (MHz): 82 ±1
- Pulse Length (ps): >15 at 1064 nm
- Spatial Mode: TEM00
- M²: <1.2
- Beam Diameter (mm): 1.35 ±15%
- Beam Divergence (μrad): <480
- Beam Ellipticity: 0.9 to 1.1
- Pointing Stability (μrad/°C): <20
- Polarization: linear >100:1, vertical
- Noise (10 Hz to 2 MHz): <1% (rms)
- Long-term Power Stability: <±2%

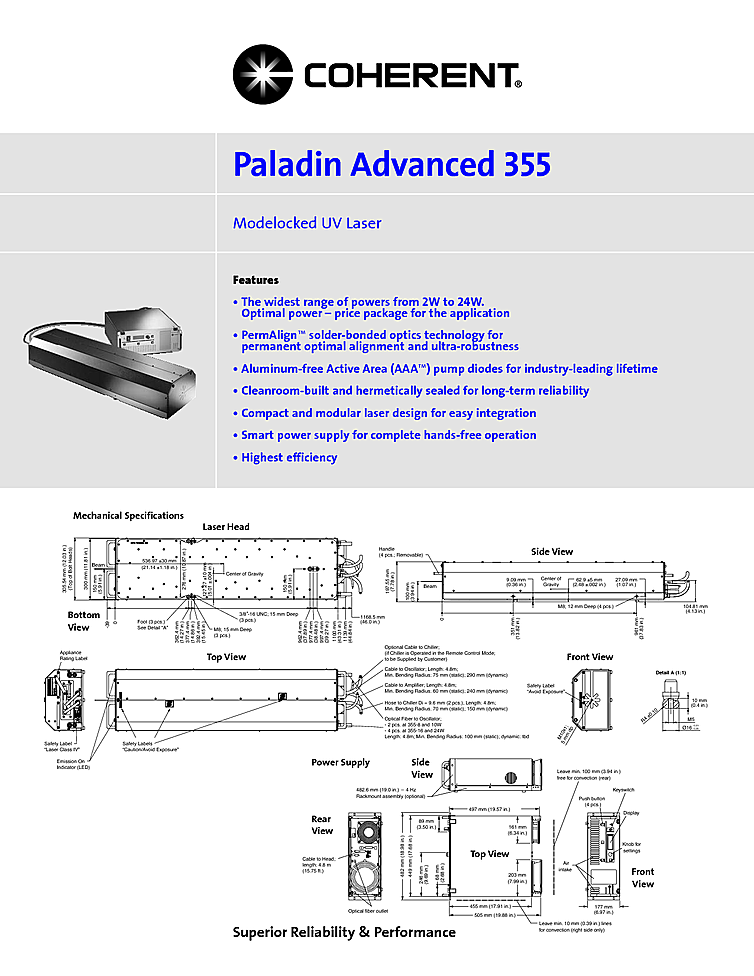

Description:
Picosecond laser from Coherent is mode locked at a UV wavelength. Coherent laser is optimized for price and performance with highest efficiency available. Laser is manufactured in a cleanroom with high performance pump laser diodes to ensure long term reliability. For easy laser integration the picosecond laser is compact with a modular design and the use of the Smart power supply ensure hands free operation. Laser has a pulse repetition rate of 82 MHz with a pulse length greater than 15ps. Picosecond laser with output power greater than 24 watts at a wavelength of 355nm.
