1064nm, 40W Nanosecond Laser

Photonics Industries Model SN-1064-40
1064nm Nanosecond Laser
40W Output Power

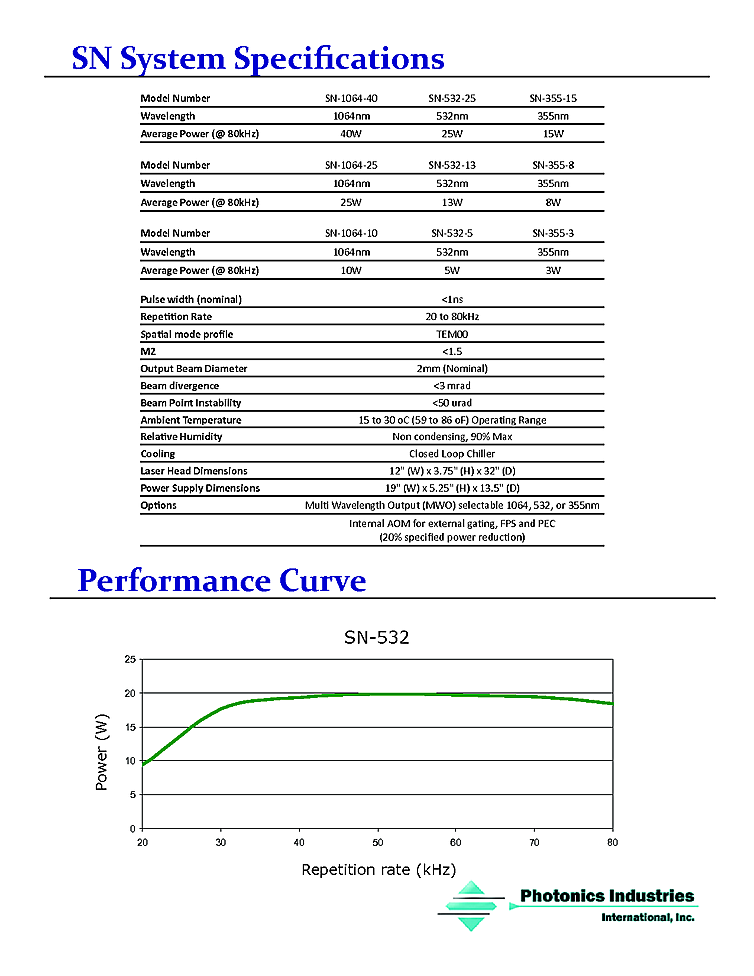

Typical Specifications:
- Wavelength: 1064nm
- Average Power (@ 80kHz): 40W
- Pulse width (nominal): <1ns
- Repetition Rate: 20 to 80kHz
- Spatial mode profile: TEM00
- M2: <1
- Output Beam Diameter: 2mm (Nominal)
- Beam divergence: <3 mrad
- Beam Point Instability: <50 urad

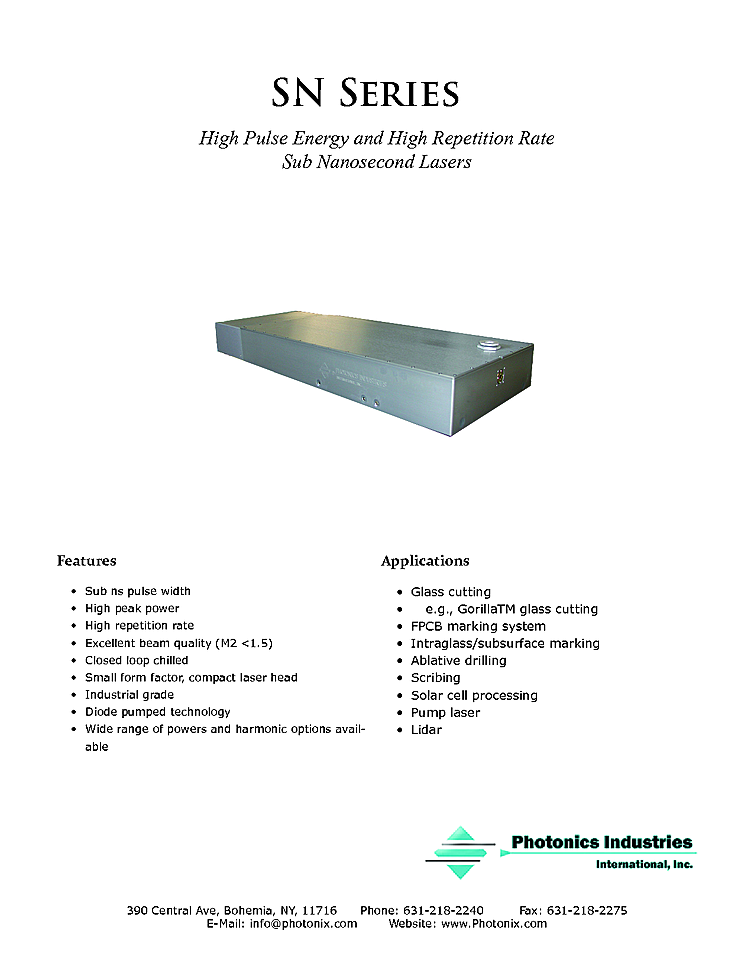

Description:
Nanosecond laser from Photonic Industries. Key features of the industrial grade nanosecond laser include closed loop chilled, small form factor, compact laser head using diode pumped technology and provides wide range of powers and harmonic options available. Applications for high energy nanosecond pulsed laser include glass cutting, FPCB marking system, intraglass/subsurface marking, ablative drilling, scribing, solar cell processing, pump laser and Lidar. High peak power with pulse widths less than 1ns and pulse repetition rate from 20kHz to 80kHz. Excellent beam quality of the nanosecond with M2<1.5 and divergence less than 3mrad. Nanosecond laser with average output power up to 40 watts at a wavelength of 1064nm.
