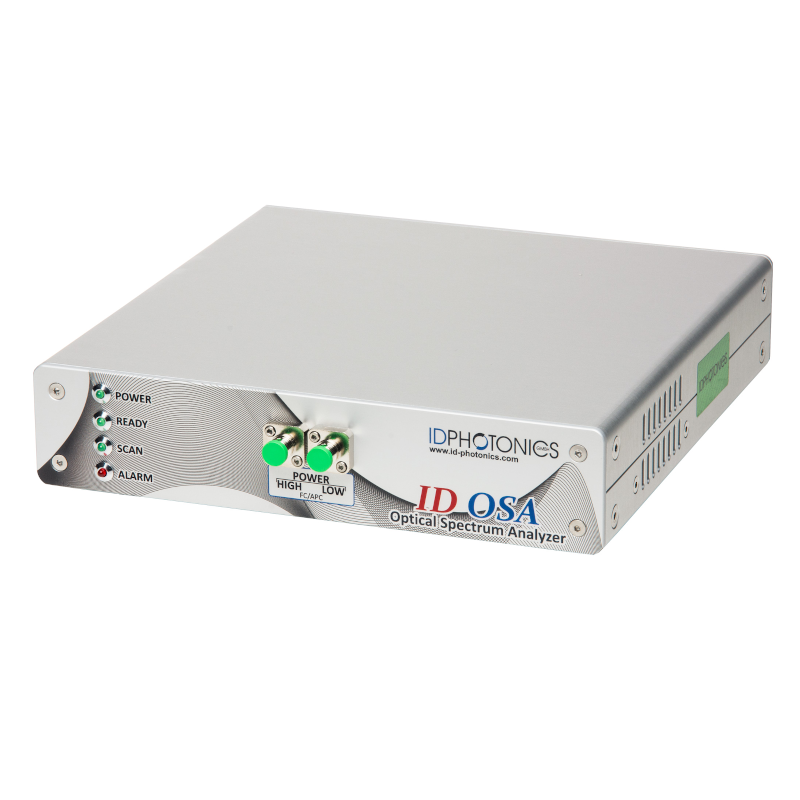

ID Photonics High Resolution C-Band Optical Spectrum Analyzer; Scan Range 1528.5 nm – 1567.5 nm

Product Overview:

ID OSA is a versatile Optical Spectrum Analyzer for R&D and production test applications with picometer class spectral resolution across the C Band. It makes it a cost effective solution for spectral monitoring. Two input ports with different sensitivity boost the available power range beyond 90dB allowing accurate analysis of both low power signals as well as high power DWDM bands. The unit is extremely compact and rugged as it contains no moving parts and does not require recalibration. The optical input connector plate can be removed by the user allowing to clean the input port connectors effectively. It is controlled via USB or Ethernet interface.

An integrated Web Server allows controlling the instrument via any Browser based device such as smartphones without software installation. 4 Key factors make this instrument an ideal solution for spectral monitoring in R&D and production test applications:

• Cost Effective - Less than 30% of a traditional OSA
• Rugged - No Calibration required and no moving Optical Parts
• Fast - Scans C band at full Resolution in 0.5 seconds
• Compact - Half Size 1HE 19 Inch Stacking
